SPECIFICATIONSInterfaces and Modules |
||
|
4 |
40 GE QSFP+ Slots |
|
|
2 |
25 GE SFP28/ 10GE SFP+ / GE SFP HA Slots | |
| 14 | 25 GE SFP28/ 10 GE SFP+/ GE SFP Slots | |
| 4 | 10 GE RJ45 Ports | |
| 12 | GE RJ45 Ports | |
| 2 | GE RJ45 Management/HA Ports | |
|
1/1 |
USB Ports (Client / Server) |
|
|
1 |
Console Port |
|
|
0 |
Onboard Storage |
|
|
2×SFP + (SR 10GE) |
Included Transceivers |
|

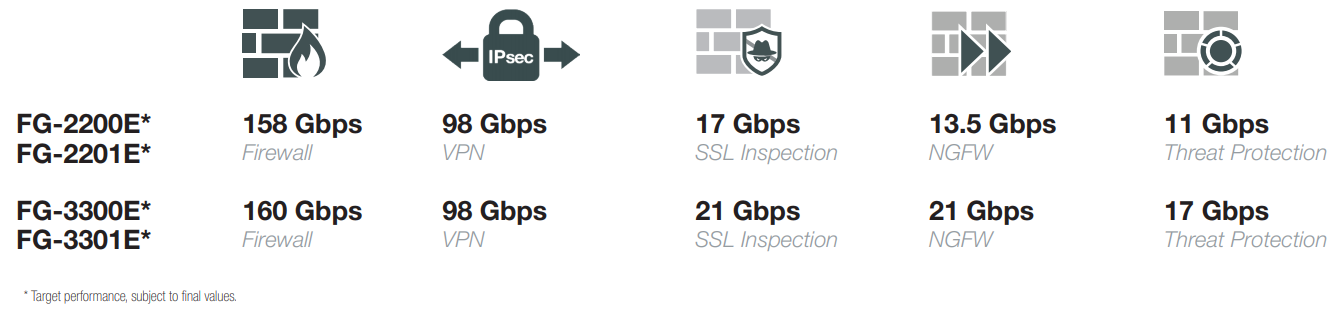

System Performance — Enterprise Traffic Mix |
||
|
27 Gbps |
IPS Throughput |
|
|
23 Gbps |
NGFW Throughput |
|
|
17 Gbps |
Threat Protection Throughput |
|
System Performance and Capacity |
||
|
160/158/100 Gbps |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
|
|
160/158/100 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
|
|
3.17 μs |
Firewall Latency (64 byte, UDP) |
|
|
150 Mpps |
Firewall Throughput (Packet per Second) |
|
|
50 Million |
Concurrent Sessions (TCP) |
|
|
700,000 |
New Sessions/Second (TCP) |
|
|
200,000 |
Firewall Policies |
|
|
98 Gbps |
IPsec VPN Throughput (512 byte) |
|
|
40,000 |
Gateway-to-Gateway IPsec VPN Tunnels |
|
|
200,000 |
Client-to-Gateway IPsec VPN Tunnels |
|
|
10 Gbps |
SSL-VPN Throughput |
|
|
30,000 |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
|
|
21 Gbps |
SSL Inspection Throughput (IPS, avg. HTTPS) |
|
|
11,000 |
SSL Inspection CPS (IPS, avg. HTTPS) |
|
|
4 Million |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
|
|
70 Gbps |
Application Control Throughput (HTTP 64K) |
|
|
55 Gbps |
CAPWAP Throughput (HTTP 64K) |
|
|
10 / 500 |
Virtual Domains (Default / Maximum) |
|
|
300 |
Maximum Number of FortiSwitches Supported |
|
|
4,096/ 2,048 |
Maximum Number of FortiAPs (Total / Tunnel) |
|
|
20,000 |
Maximum Number of FortiTokens |
|
|
Active, Active-Active, Passive, Clustering |
High Availability Configurations |
|
Dimensions and Power |
||
|
3.5 x 17.44 x 21.89 |
Height x Width x Length (inches) |
|
|
88.9 x 443x 556 |
Height x Width x Length (mm) |
|
|
42.9lbs (19.5 kg) |
Weight |
|
|
Rack Mount, 2RU |
Form Factor (supports EIA/non-EIA standards) |
|
|
100–240V AC, 60–50 Hz |
AC Power Supply |
|
|
492W/ 610W |
Power Consumption (Average/ Maximum) |
|
|
12@100V, 9A@240V |
Current (Maximum) |
|
|
2097 BTU/h |
Heat Dissipation |
|
|
Yes, Hot Swappable |
Redundant Power Supplies |
|
Operating Environment and Certifications |
||
|
32–104°F (0–40°C) |
Operating Temperature |
|
|
-31–158°F (-35–70°C) |
Storage Temperature |
|
|
10–90% non-condensing |
Humidity |
|
|
70 dBA |
Noise Level |
|
|
Front to Back |
Forced Airflow |
|
|
Up to 7,400 ft (2,250 m) |
Operating Altitude |
|
|
FCC Part 15 Class A, CE, RCM, VCCI, UL/cUL, CB |
Compliance |
|
|
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Certifications |
|
