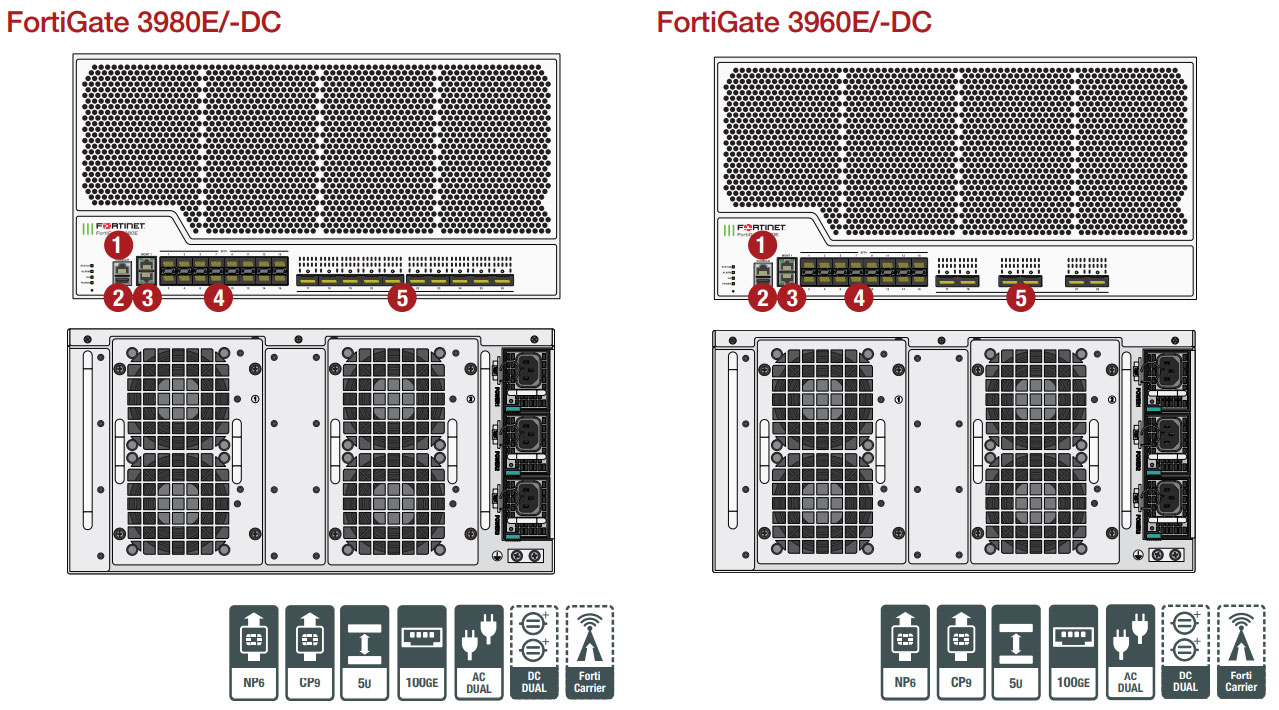

FortiGate 3980E-DC |
FortiGate 3960E-DC |
40/100 GE QSFP+/QSFP28 Slots |
10 |
6 |
10 GE SFP+ Slots |
16 |
GE RJ45 Management Ports |
2 |
USB Ports |
1 |
Console Port |
1 |
Internal Storage |
– |
Included Transceivers |
2x SFP+ (SR 10 GE) |
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
1.05 Tbps / 1.05 Tbps / 680 Gbps |
620 / 610 / 370 Gbps |
Firewall Latency (64 byte, UDP) |
3 μs |
Firewall Throughput (Packet per Second) |
1,020 Mpps |
555 Mpps |
Concurrent Sessions (TCP) |
160 Million |
New Sessions/Sec (TCP) |
550,000 |
Firewall Policies |
200,000 |
IPsec VPN Throughput (512 byte) |
400 Gbps |
280 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
Client-to-Gateway IPsec VPN Tunnels |
200,000 |
SSL-VPN Throughput |
9.5 Gbps |
9 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
30,000 |
30,000 |
SSL Inspection Throughput (IPS, HTTP) |
32 Gbps |
30 Gbps |
Application Control Throughput (HTTP 64K) |
55 Gbps |
40 Gbps |
Virtual Domains (Default / Maximum) |
10 / 500 |
Maximum Number of Switches Supported |
256 |
Maximum Number of FortiAPs (Total / Tunnel Mode) |
4,096 / 1,024 |
Maximum Number of FortiTokens |
5,000 |
Maximum Number of Registered FortiClients |
100,000 |
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
IPS Throughput |
82 Gbps |
80 Gbps |
IPS Throughput |
32 Gbps |
30 Gbps |
NGFW Throughput |
28 Gbps |
22 Gbps |
Threat Protection Throughput |
18.5 Gbps |
13.5 Gbps |
Height x Width x Length (inches) |
8.8 x 17.2 x 27.3 |
|
Height x Width x Length (mm) |
222 x 437 x 695 |
Weight |
106.3 lbs (48.2 kg) |
100.8 lbs (45.8 kg) |
Form Factor |
5 RU |
AC Power Supply |
100–240V AC, 50–60 Hz |
DC Power Supply (FG-3980E-DC, FG-3960E-DC) |
-48–60V |
Power Consumption (Average / Maximum) |
1172 / 2350 W |
960 / 2110 W |
Current (Maximum) |
23.5A@100V, 9.8A@240V |
21.1A@100V, 8.8A@240V |
Heat Dissipation |
8,019 BTU/h |
7,200 BTU/h |
Redundant Power Supplies |
Yes, Hot Swappable |
Operating Temperature |
32–104°F (0–40°C) |
Storage Temperature |
-31–158°F (-35–70°C) |
Humidity |
10–90% non-condensing |
Noise Level |
63 dBA |
Operating Altitude |
Up to 7,400 ft (2,250 m) |
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
NEBS Certified |
– |
