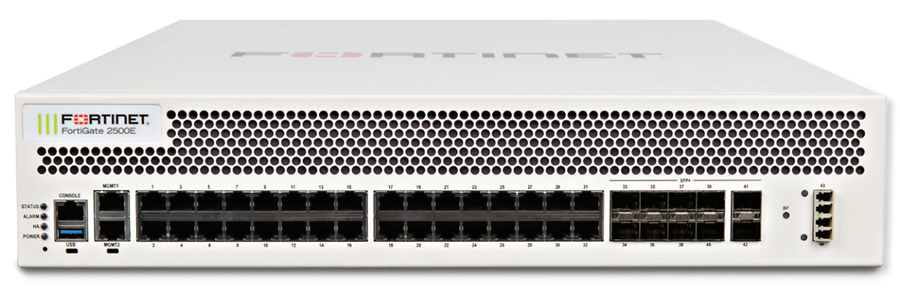

| FortiGate 2500E Specifications | |
|---|---|
| Hardware Specifications | |
| Hardware Accelerated 10 GE SFP+ Slots | 10 + 2 bypass |
| Hardware Accelerated GE RJ45 Ports | 32 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports | 1 |
| Console Port | 1 |
| Onboard Storage | 480 GB |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 150 / 150 / 95 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 150 / 150 / 95 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 145.5 Mpps |
| Concurrent Sessions (TCP) | 20 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte packets) | 95 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 10,000 |
| IPS Throughput (HTTP / Enterprise Mix) 1 | 25 / 11.5 Gbps |
| SSL Inspection Throughput 2 | 12.5 Gbps |
| Application Control Throughput 3 | 15 Gbps |
| NGFW Throughput 4 | 9 Gbps |
| Threat Protection Throughput 5 | 21 Gbps |
| CAPWAP Throughput 6 | 21 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered Endpoints | 8,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
| Height x Width x Length (mm) | 89 x 442 x 555 |
| Weight | 38.5 lbs (17.6 kg) |
| Form Factor | Rack Mount, 2 RU |
| Power | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 9A |
| Power Consumption (Average / Maximum) | 312 / 470 W |
| Heat Dissipation | 1,604 BTU/h |
| Redundant Power Supplies | Yes, Hot swappable |
| Environment | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | |
| Safety | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | |
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
