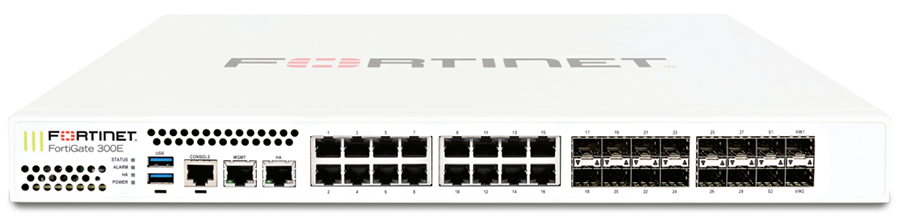

FortiGate 300E |

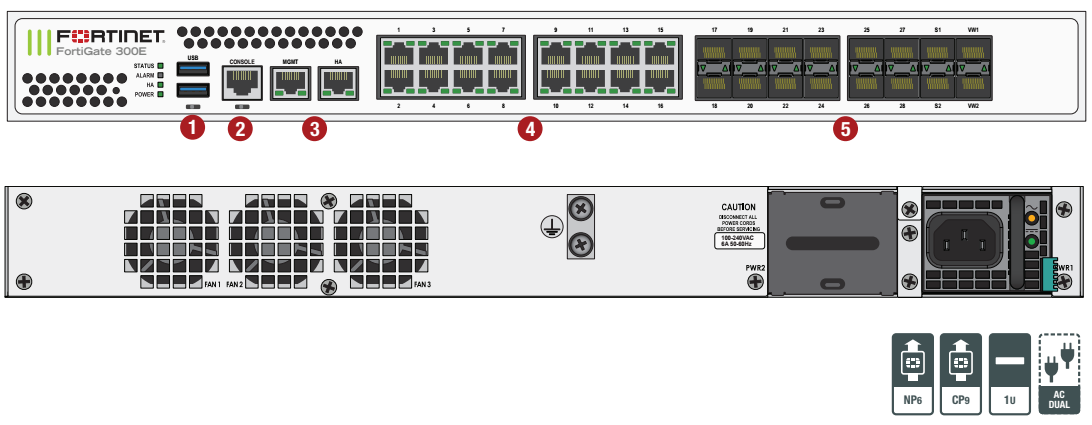

| GE RJ45 Interfaces |
16 |
| GE SFP Slots |
16 |
| GE RJ45 Management Ports |
2 |
| USB Ports |
2 |
| RJ45 Console Port |
1 |
| Local Storage |
NL |
| Included Transceivers |
2x SFP (SX 1 GE) |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
32 / 32 / 30 Gbps |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
32 / 32 / 30 Gbps |
| Firewall Latency (64 byte UDP packets) |
3 μs |
| Firewall Throughput (Packets Per Second) |
30 Mpps |
| Concurrent Sessions (TCP) |
4 Million |
| New Sessions/Second (TCP) |
300,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) 1 |
20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
| Client-to-Gateway IPsec VPN Tunnels |
50,000 |
| SSL-VPN Throughput |
2.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
| SSL Inspection Throughput 3 |
6.8 Gbps |
| Application Control Throughput (HTTP 64K) 2 |
7 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of Switches Supported |
NA |
| Maximum Number of FortiAPs (Total / Tunnel) |
512 / 256 |
| Maximum Number of FortiTokens |
1,000 |
| Maximum Number of Registered Endpoints |
600 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| IPS Throughput 2 |
11 Gbps |
| IPS Throughput 2 |
5 Gbps |
| NGFW Throughput 2,4 |
3.5 Gbps |
| Threat Protection Throughput 2,5 |
3 Gbps |
| Height x Width x Length (inches) |
1.77 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
45 x 432 x 380 |
| Weight |
16.1 lbs (7.3 kg) |
| Form Factor |
Rack Mount, 1 RU |
| Power Consumption (Average / Maximum) |
80 W / 167 W |
| Power Source |
100–240V 60–50Hz |
| Current (Maximum) |
6A |
| Heat Dissipation |
570 BTU/h |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
48 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
