FortiGate 600E | FortiGate 601E | |
---|---|---|

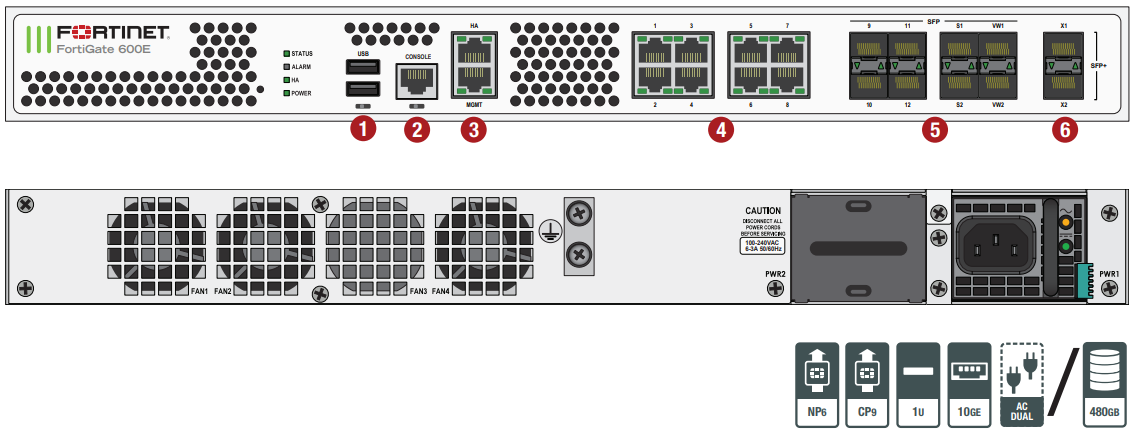

Interfaces and Modules | ||
10 GE SFP+ Slots | 2 | |
GE RJ45 Interfaces | 8 | |
GE SFP Slots | 8 | |
GE RJ45 Management Ports | 2 | |
USB Ports | 2 | |
RJ45 Console Port | 1 | |
Local Storage | NIL | 2x 240 GB SSD |
Included Transceivers | 2x SFP (SX 1 GE) | |
System Performance — Enterprise Traffic Mix | ||
IPS Throughput | 10 Gbps | |
NGFW Throughput | 9.5 Gbps | |
Threat Protection Throughput | 7 Gbps | |
System Performance and Capacity | ||
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 27 Gbps | |
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 27 Gbps | |
Firewall Latency (64 byte, UDP) | 2 μs | |
Firewall Throughput (Packet per Second) | 40.5 Mpps | |
Concurrent Sessions (TCP) | 8 Million | |
New Sessions/Second (TCP) | 450,000 | |
Firewall Policies | 10,000 | |
IPsec VPN Throughput (512 byte) | 20 Gbps | |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | |
Client-to-Gateway IPsec VPN Tunnels | 50,000 | |
SSL-VPN Throughput | 7 Gbps | |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 | |
SSL Inspection Throughput (IPS, avg. HTTPS) | 8 Gbps | |
SSL Inspection CPS (IPS, avg. HTTPS) | 5,500 | |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800,000 | |
Application Control Throughput (HTTP 64K) | 15 Gbps | |
CAPWAP Throughput (HTTP 64K) | 18 Gbps | |
Virtual Domains (Default / Maximum) | 10 / 10 | |
Maximum Number of FortiSwitches Supported | 64 | |
Maximum Number of FortiAPs (Total / Tunnel) | 1,024 / 512 | |
Maximum Number of FortiTokens | 1,000 | |
Maximum Number of Registered Endpoints | 2,000 | |
High Availability Configurations | Active-Active, Active-Passive, Clustering | |
Dimensions and Power | ||
Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 | |
Height x Width x Length (mm) | 44.45 x 432 x 380 | |
Weight | 16.1 lbs (7.3 kg) | 16.6 lbs (7.5 kg) |
Form Factor | 1 RU | |
Power Consumption (Average / Maximum) | 129 W / 244 W | |
Power Source | 100–240V 60–50Hz | |
Current (Maximum) | 6A @ 100V | |
Heat Dissipation | 832 BTU/h | |
Redundant Power Supplies (Hot Swappable) | optional | |
Operating Environment and Certifications | ||
Operating Temperature | 32–104°F (0–40°C) | |
Storage Temperature | -31–158°F (-35–70°C) | |
Humidity | 10–90% non-condensing | |
Noise Level | 59 dBA | |
Operating Altitude | Up to 7,400 ft (2,250 m) | |
Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
